沙迪克打孔机用眼模

  • TSG-NEW-D8-EX20 Type NEW Extension 20mmL TS Guide for Sodick Small Hole Drilling Mechine,EDM Consumables
  • TSG-NEW-D8-EX20 Type NEW Extension 20mmL TS Guide for Sodick Small Hole Drilling Mechine,EDM Consumables
  • TSG-NEW-D8-EX20 Type NEW Extension 20mmL TS Guide for Sodick Small Hole Drilling Mechine,EDM Consumables
TSG-NEW-D8-EX20 Type NEW Extension 20mmL TS Guide for Sodick Small Hole Drilling Mechine,EDM ConsumablesTSG-NEW-D8-EX20 Type NEW Extension 20mmL TS Guide for Sodick Small Hole Drilling Mechine,EDM ConsumablesTSG-NEW-D8-EX20 Type NEW Extension 20mmL TS Guide for Sodick Small Hole Drilling Mechine,EDM Consumables

TSG-NEW-D8-EX20 Type NEW Extension 20mmL TS Guide for Sodick Small Hole Drilling Mechine,EDM Consumables

  • Ref No.: TSG-NEW-D8-EX20-030
  • OEM No.: -
  • Size: OD=10/8mm,ID=0.30mm,L=43mm
  • Brand: Sodick
  • 产品描述: TSG-NEW-D8-EX20 Type NEW Extension 20mmL TS Guide for Sodick Small Hole Drilling Mechine,EDM Consumables,Power EDM
  • 在线订购   邮箱
产品详情:

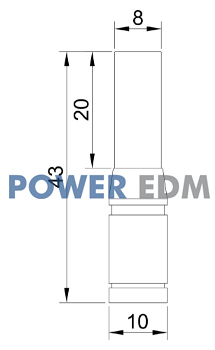

Sodick TS Guide

T New Type Extension

Available ID=0.3mm-3.0mm

Extension OD=8mm/+20mmL

Body OD=10.0mm

Shaft OD=8.0mm

Extension Length L=20mm

Total Length L=43mm


Model NO.

ID (mm)

Shaft OD(mm

Extension L(mm

TSG-NEW-D8-EX20-030

Φ0.30mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-040

Φ0.40mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-050

Φ0.50mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-060

Φ0.60mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-070

Φ0.70mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-080

Φ0.80mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-090

Φ0.90mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-100

Φ1.00mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-110

Φ1.10mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-120

Φ1.20mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-130

Φ1.30mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-140

Φ1.40mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-150

Φ1.50mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-160

Φ1.60mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-170

Φ1.70mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-180

Φ1.80mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-190

Φ1.90mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-200

Φ2.00mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-210

Φ2.10mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-220

Φ2.20mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-230

Φ2.30mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-240

Φ2.40mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-250

Φ2.50mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-260

Φ2.60mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-270

Φ2.70mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-280

Φ2.80mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-290

Φ2.90mm

Φ8.0mm

20mm

TSG-NEW-D8-EX20-300

Φ3.00mm

Φ8.0mm

20mm

Notes:

Available Extended sizesEX20,EX40,EX60,EX80,EX100

Please contact with our Sales if you have speical sizes.
